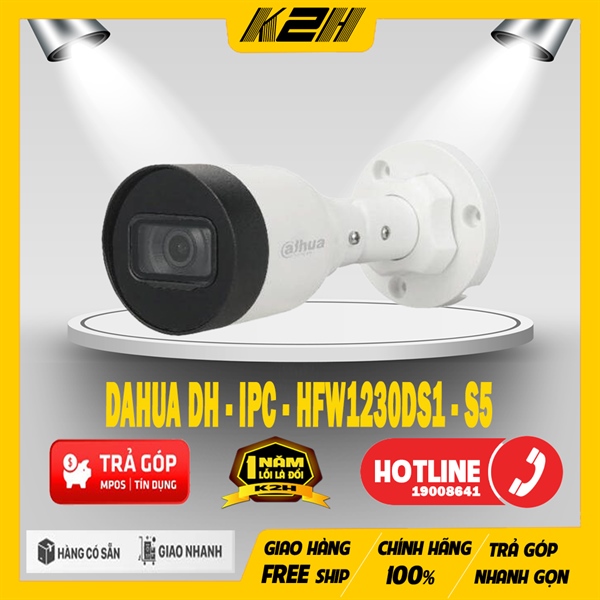

Camera IP hồng ngoại 2.0 Megapixel DAHUA DH-IPC-HFW1230DS1-S5

– DAHUA DH-IPC-HFW1230DS1-S5 là dòng camera 2MP Entry IR Fixed-focal Bullet Netwok.

– Cảm biến hình ảnh: 1/2.8 inch CMOS.

– Độ phân giải: 2.0 Megapixel.

– Chuẩn nén hình ảnh: H265+/H.265/H.264/H.264+.

– Độ nhạy sáng: 0.01 Lux@F2.0.

– Tầm quan sát hồng ngoại: 30m.

– Ống kính cố định 3.6mm.

– Hỗ trợ công nghệ hồng ngoại thông minh.

– Hỗ trợ chế độ ngày đêm (ICR).

– Chức năng chống ngược sáng DWDR.

– Chức năng tự động cân bằng ánh sáng trắng (AWB).

– Chức năng tự động bù tín hiệu ảnh (AGC).

– Chức năng chống ngược sáng(BLC).

– Chức năng chống nhiễu (3D-DNR).

– Hỗ trợ P2P.

– Chuẩn tương thích ONVIF (Profile S/Profile T).

– Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).

– Điện áp: DC12V (Không hỗ trợ PoE), công suất <3.3W.

– Nhiệt độ hoạt động: -40°C ~ +60°C.

– Chất liệu kim loại + Nhựa.

Đặc tính kỹ thuật

Model	DH-IPC-HFW1230DS1-S5
Camera
Image Sensor	1/2.8-inch CMOS
Max. Resolution	1920 (H) × 1080 (V)
ROM	16 MB
RAM	64 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.01 Lux@F2.0 (Color,30IRE) 0.001 Lux@F2.0 (B/W,30IRE) 0 Lux (Illuminator on)
S/N Ratio	> 56 dB
S/N Ratio	> 56 dB
Illumination Distance	30 m (98.43 ft) (IR)
Illuminator On/Off Control	l Auto; manual
Illuminator Number	3 (IR LED)
Pan/Tilt/Rotation Range	Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
Lens
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	2.8 mm; 3.6 mm
Max. Aperture	2.8 mm: F2.0 3.6 mm: F2.0
Field of View	2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120° 3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100°
Iris Control	Fixed
Close Focus Distance	2.8 mm: 0.5 m (1.6 ft) 3.6 mm: 0.8 m (2.6 ft)
Video
Video Compression	H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec	Smart H.265+; Smart H.264+
Video Frame Rate	Main stream: 1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Stream Capability	2 streams
Resolution	1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 32 kbps–6144 kbps H.265: 12 kbps–6400 kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	DWDR
White Balance	Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control	Auto;manual
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Smart Illumination	Yes
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror	Yes
Privacy Masking	4 areas
Alarm
Alarm Event	Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception
Network
Network Port	RJ-45 (10/100 Base-T)
SDK and API	Yes
Cyber Security	Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Network Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast
Interoperability	ONVIF (Profile S/Profile T); CGI; P2P; Genetec; Milestone
User/Host	6 (Total bandwidth: 36 M)
Storage	FTP
Browser	IE Chrome Firefox
Management Software	Smart PSS; DSS; DMSS
Mobile Client	IOS; Android
Certification
Certifications	CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B
Power
Power Supply	12V DC
Power Consumption	Basic: 1.4W (12V DC) Max. (ICR + H.265+IR intensity) : 3.3W (12V DC)
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤ 95%
Storage Temperature	–40°C to +60°C (–40°F to +140°F)
Protection	IP67
Structure
Casing	Metal + plastic
Product Dimensions	162.6 mm × Φ70 mm
Net Weight	0.22 kg (0.4 lb)
Gross Weight	0.34 kg (0.7 lb)
