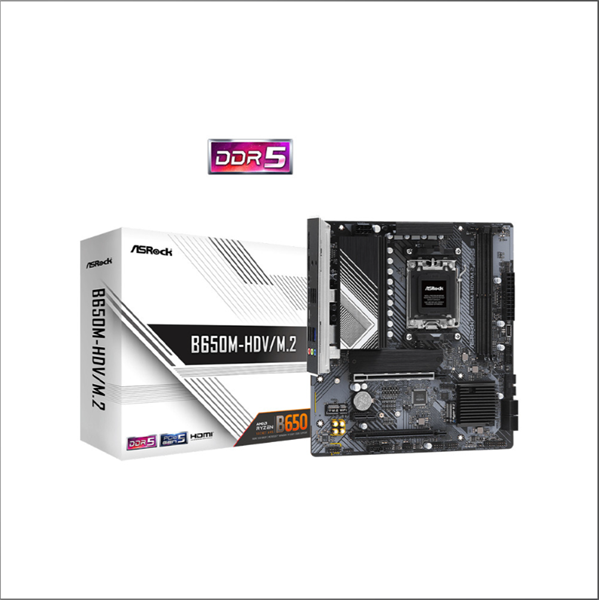

Bo mạch chủ ASROCK B650M-HDV/M2 DDR5 (HDMI, Display Port)

Name: Bo mạch chủ ASROCK B650M-HDV/M2 DDR5 (HDMI, Display Port)
SKU: SP000266
Price: 3300000 VND
Availability: InStock

~~3.450.000 ₫~~ 3.300.000 ₫

Mã: SP000266 Danh mục: MAINBOARD

Mô tả

MÔ TẢ SẢN PHẨM

Thông số kỹ thuật Bo mạch chủ ASROCK B650M-HDV/M2 DDR5 (HDMI, Display Port)

Thương hiệu	ASRock
Model	B650M-HDV/M2
CPU hỗ trợ	AMD AM5
Chipset	Chipset AMD B650
RAM hỗ trợ	– Dual Channel DDR5 Memory Technology – 2 x DDR5 DIMM Slots – Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)* – Max. capacity of system memory: 96GB – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Đồ họa	Integrated AMD RDNA™ graphics (Actual support may vary by CPU) – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Khe mở rộng	CPU: – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* – 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* Chipset: – 1 x PCIe 4.0 x1 Slot (PCIE2)* – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module – Supports AMD CrossFire™ – 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Hỗ trợ ổ cứng	CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 4 x SATA3 6.0 Gb/s Connectors
Cổng kết nối phía trong	– 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x CPU Fan Connector (4-pin)* – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2 Header
Cổng kết nối (Back Panel)	– 2 x Antenna Mounting Points – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x USB 3.2 Gen1 Type-C Port – 2 x USB 3.2 Gen1 Type-A Ports – 4 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x BIOS Flashback Button – HD Audio Jacks: Line in / Front Speaker / Microphone
LAN	2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Dragon RTL8125BG – Supports Dragon 2.5G LAN Software – Smart Auto Adjust Bandwidth Control – Visual User Friendly UI – Visual Network Usage Statistics – Optimized Default Setting for Game, Browser, and Streaming Modes – User Customized Priority Control
WIRELESS & BLUETOOTH	Không hỗ trợ
Kích thước	mATX 24.4 cm x 22.6 cm

Thông tin bổ sung

Trọng lượng	1000 kg
