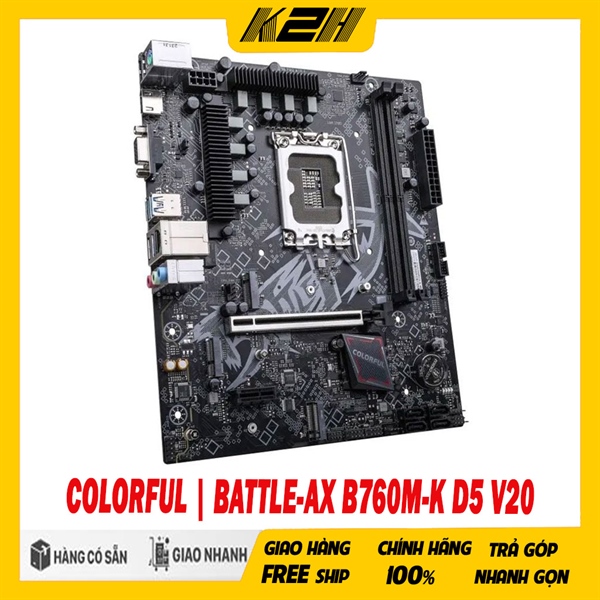

Mainboard Colorful BATTLE-AX B760M-K D5 V20 | Intel B760, Socket 1700, M-ATX, DDR5 | BẢO HÀNH 3 NĂM
2.550.000 ₫ 2.450.000 ₫
Mô tả
BẢNG THÔNG SỐ:
| Model | BATTLE-AX B760M-K D5 V20 |
| Product Series | BATTLE-AX series |
| Chipset | Intel B760 |
| Processor | Support the 13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® Processor |
| (* Please visit www.colorful.cn for the latest processor support list) | |
| Memory | 2 DDR5 memory sockets are provided, which can support up to 96 GB of memory (a single socket can support up to 48 GB of memory) |
| – Support DDR5-7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory | |
| – Intel is supported ® Extreme Memory Profile (XMP) memory technology | |
| – supports dual channel memory technology | |
| (* Please visit www.colorful.cn for the latest memory compatibility list) | |
| SATA Ports | 2 M.2 slots and 6 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices |
| – M.2_1 slot: support 2242/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) | |
| – M.2_2 slot: support 2242/2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel) | |
| (* See the official BIOS user guide of Colorful for the steps to create a RAID disk array) | |

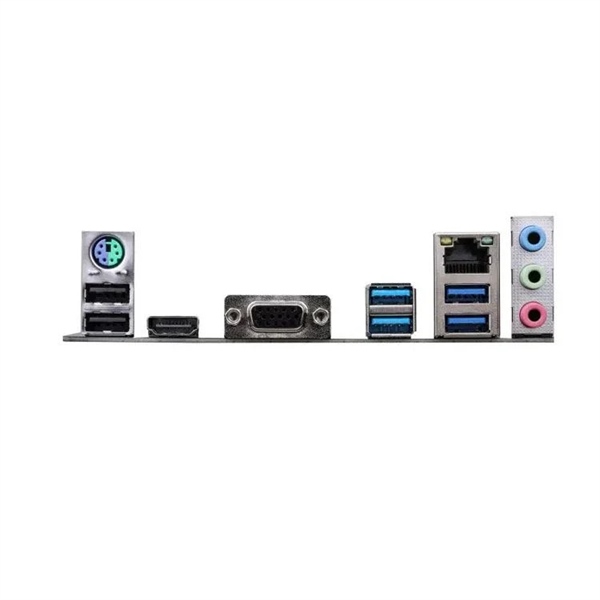

| Board I/O | Rear I/O: |
| – 2×USB 2.0 interfaces | |
| – 4×USB 3.2 Gen 1 Type-A interfaces | |
| – 1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution | |
| – 1×VGA interface | |
| – 1×PS.2 interface | |
| – 1×gigabit network interface | |
| – 3×audio interfaces(audio input/audio output/microphone) | |
| On board: | |
| – 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces | |
| – 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces | |
| – 1×CPU fan pin | |
| – 2×System fan pins | |
| – 1×Front audio pin | |
| – 1×Front panel pin | |
| – 1×Spraker pin | |
| – 1×COM port pin | |
| – 1×ME write protection jumper | |
| – 1×Clear CMOS jumper | |
| – 1×BIOS burner pin | |
| – 1×POST card pin | |
| – 1×Wake-up control jumper | |
| Expansion Slots | 1×PCIe 4.0 x16 slot |
| 1×PCIe 3.0 x1 slot | |
| BIOS | 128M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8111H Gigabit Network Card |
| Audio | 5.1 Channel sound card |
Thông tin bổ sung
| Trọng lượng | 2000 kg |
|---|
