Mainboard DDR5 | MSI PRO B760M-E (CHIP SET B760 LGA1700, RAM DDR5) | BẢO HÀNH 3 NĂM
2.850.000 ₫ 2.590.000 ₫
Mô tả
BẢNG THÔNG SỐ:
| CHIPSET | INTEL B760 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
| LGA 1700 | |
| MEMORY | 2x DDR5, Maximum Memory Capacity 96GB |
| Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) | |
| Max. overclocking frequency: | |
| • 1DPC 1R Max speed up to 6400+ MHz | |
| • 1DPC 2R Max speed up to 5600+ MHz | |
| Supports Intel® XMP 3.0 OC | |
| Supports Dual-Controller Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| ONBOARD GRAPHICS | 1x HDMI™ |
| Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* | |
| 1x VGA | |
| Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| SLOT | 1x PCI-E x16 slot |
| 1x PCI-E x1 slot | |
| PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| STORAGE | 1x M.2 |
| M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | |
| 4x SATA 6G | |
| * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 2x USB 3.2 Gen1 Type A (Rear) | |
| 2x USB 3.2 Gen1 Type A (Front) | |
| LAN | Realtek® RTL8111H Gigabit LAN |
| AUDIO | Realtek® ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| INTERNAL IO | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 2x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 2x USB 3.2 Gen1 Type A ports | |
| LED FEATURE | 4x EZ Debug LED |

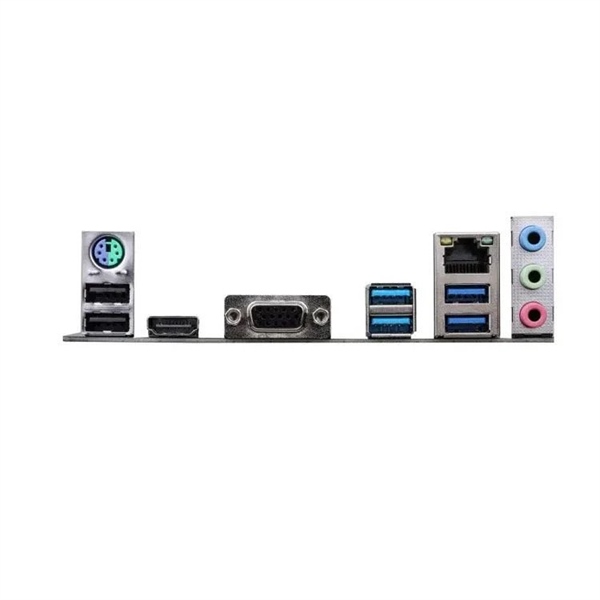

| BACK PANEL PORTS | HDMI™ |
| VGA | |
| Keyboard / Mouse | |
| USB 3.2 Gen 1 5Gbps (Type-A) | |
| LAN port | |
| Audio Connectors | |
| USB 2.0 | |
| USB 2.0 | |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB INFO | mATX |
| 200mmx236.16mm |
Thông tin bổ sung
| Trọng lượng | 1000 kg |
|---|
