UNIQUE FEATURE |
ASRock USB 3.1 Gen2 – ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s) – ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy – XXL Aluminum Alloy Heatsink – Premium 60A Power Choke – Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) – Dual-Stack MOSFET (DSM) – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) – Matte Black PCB – High Density Glass Fabric PCB ASRock Steel Slots ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
CPU | – Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket – Digi Power design – 11 Power Phase design – Supports Intel® Turbo Boost Max Technology 3.0* *Please note that the 4-Core processors only support Intel® Turbo Boost Technology 2.0.
|
CHIPSET |
|
MEMORY | – Quad Channel DDR4 Memory Technology – 8 x DDR4 DIMM Slots – Supports DDR4 4200+(OC)* / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory – Supports non-ECC RDIMM (Registered DIMM)** – Max. capacity of system memory: 128GB*** – Supports Intel® Extreme Memory Profile (XMP) 2.0 – 15μ Gold Contact in DIMM Slots *The maximum memory frequency supported may vary by processor type.
**Due to Intel® microcode updates, RDIMM is not supported with BIOS version 1.30 or above. ***Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. |
BIOS | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.1 Compliant wake up events – SMBIOS 3.0 Support – CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCIO, VCCST, VCCSA, VCCSFR, VCCPLL, PEGRCOMP Voltage Multi-adjustment |
GRAPHICS |
|
AUDIO |
|
LAN | – Gigabit LAN 10/100/1000 Mb/s – Giga PHY Intel® I219V – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE |
SLOTS | – 3 x PCI Express 3.0 x16 Slots* – 1 x PCI Express 3.0 x1 Slot** – Supports AMD Quad CrossFireX™ and CrossFireX™ – Supports NVIDIA® Quad SLI™ and SLI™ – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module – 15μ Gold Contact in VGA PCIe Slot (PCIE2 and PCIE3) *If you install CPU with 44 lanes, PCIE2/PCIE3/PCIE4 will run at x16/x16/x4.
If you install CPU with 28 lanes, PCIE2/PCIE3/PCIE4 will run at x16/x8/x4. If you install CPU with 16 lanes, PCIE2/PCIE3/PCIE4 will run at x16/x0/x4 or x8/x8/x4. Supports NVMe SSD as boot disks **If PCIE1 slot is occupied, M2_3 slot will be disabled. |
STORAGE | – 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug* – 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** – 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** *If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled. **Supports Intel® Optane™ Technology Supports NVMe SSD as boot disks Supports ASRock U.2 Kit |
CONNECTOR
|
– 1 x Virtual RAID On CPU Header – 1 x TPM Header – 1 x Power LED and Speaker Header – 2 x RGB LED Headers* – 1 x CPU Fan Connector (4-pin)** – 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** – 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector (15μ Gold Audio Connector) – 1 x Thunderbolt™ AIC Connector (5-pin)***** – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) – 1 x Performance Mode / Easy OC Header *Supports in total up to 12V/3A, 36W LED Strip
**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ***The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. ****The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. CPU_OPT/W_PUMP1, CHA_FAN1, CHA_FAN2 and CHA_FAN3/W_PUMP2 can auto detect if 3-pin or 4-pin fan is in use. *****The Thunderbolt™ AIC card can be installed in the enabled PCIe slot (depending on CPU type). |
REAR PANEL I/O
|
– 1 x PS/2 Mouse Port – 1 x PS/2 Keyboard Port – 1 x Optical SPDIF Out Port – 2 x USB 2.0 Ports (Supports ESD Protection) – 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection) – 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection) – 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – 1 x Clear CMOS Button – HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
SOFTWARE AND UEFI
|
Software – ASRock A-Tuning – ASRock RGB LED – ASRock XFast LAN UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Instant Flash – ASRock Internet Flash – ASRock Crashless BIOS – ASRock UEFI System Browser – ASRock UEFI Tech Service – ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
SUPPORT CD
|
|
ACCESSORIES
|
– Quick Installation Guide, Support CD, I/O Shield
– 4 x SATA Data Cables – 1 x ASRock SLI_HB_Bridge_2S Card – 3 x Screws for M.2 Sockets – 1 x WiFi Bracket |
HARDWARE MONITOR
|
– Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
– Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans – Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, VCCSA, VCCSFR |
FORM FACTOR
|
|
OS
|
|
CERTIFICATIONS
|
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required) |

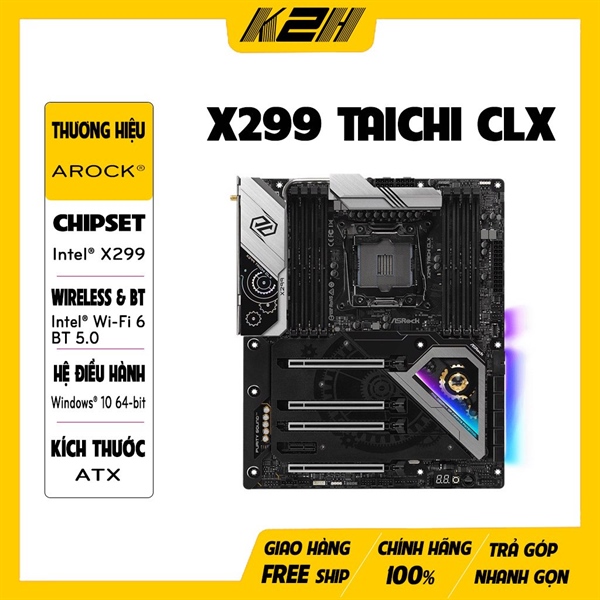

MIANBOARD ASROCK X299 TAICHI CLX – 2ND FULL BOX BH 30 NGÀY
12.000.000 ₫ 9.350.000 ₫
Hết hàng
Mã: ASROCKX299TAICHICLX
Danh mục: MAINBOARD
Mô tả
Bo mạch chủ – MAIN ASROCK X299 TAICHI CLX đến từ thương hiệu main ASROCK
Thông tin bổ sung
Trọng lượng | 30000 kg |
---|
