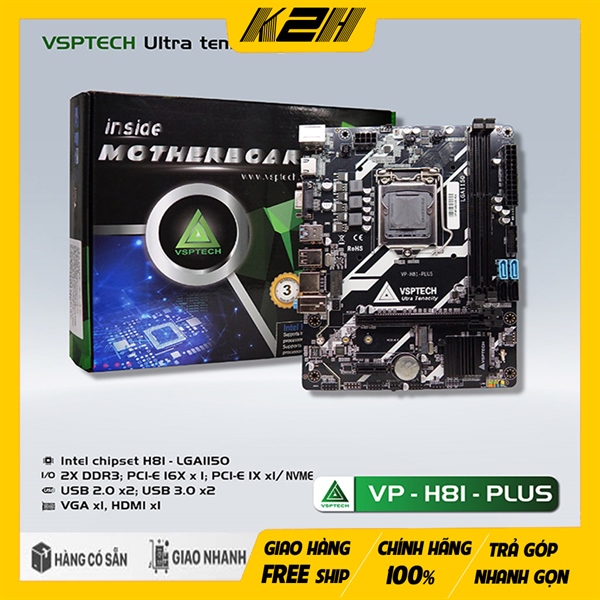

MIANBOARD VSP H81 PLUS SK1150 (CÓ KHE M.2 NVME)

Model

VSP H81-PLUS

Chipset

Intel® H81 Chipset

Sockets Supported

INTEL® Socket 1150

CPU support

Supports 4th generation Intel® Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® / Xeon® processors

Ram support

1066/1333/1600MHz Dual Channel DDR3 1066/1333/1600MHz Memory up to 16GB
2 x Memory Slots (Max. up to 8GB each)

Đồ họa

Integrated Graphics Processor/ 1 x VGA port/ 1 x HDMI port

LAN – WiF

Realtek 8103E 10/100Mbps Gigabit Ethernet on board

Âm thanh

Realtek 662 integrated on board

Cổng I / O phía sau

1 x VGA port
1 x HDMI port
2 x USB 2.0 port + 2x USB 3.0
1 x LAN jack
3 x Audio jack

Cổng I/O ở trong

2x USB 2.0 pinheaders support additional 4 USB 2.0 ports, 1 USB3.0
1 x Front Panel Audio pinheader
1 x PCI Express x16 slot, 1 PCI-E 1X

Cổng lưu trữ / kết nối

4 x SATA II port / nVME x1

Operating System Support

Win 7/10, Lunix

Chuẩn thiết kế ATX

Micro-ATX (17 x 21 cm)

Phụ kiện kèm theo

4 mounting holes
1 x SATA II cable
1 x I/O Backboard
1 x User Manual
1 x Driver CD

Bảo hành

36 tháng
