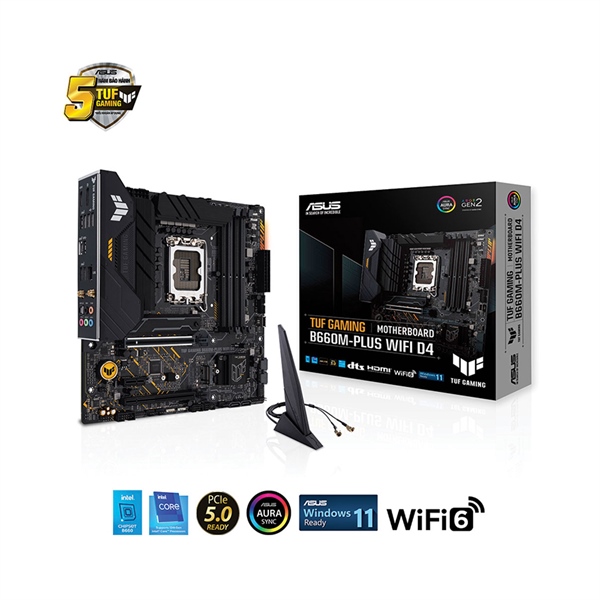

Mainboard Asus TUF Gaming B660M Plus Wifi D4 | HÀNG CHÍNH HÃNG

Name: Mainboard Asus TUF Gaming B660M Plus Wifi D4 | HÀNG CHÍNH HÃNG
SKU: TUFB660MWIFID4
Price: 3450000 VND
Availability: OutOfStock

~~3.499.000 ₫~~ 3.450.000 ₫

Hết hàng

Mã: TUFB660MWIFID4 Danh mục: MAINBOARD

Mô tả

Thông số kỹ thuật

ản phẩm	Bo mạch chủ
Tên Hãng	Asus
Model	B660M-PLUS WIFI D4
CPU hỗ trợ	Intel
Chipset	B660
RAM hỗ trợ	4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/ 4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/ 3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/ 2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Khe cắm mở rộng	Intel® 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® B660 Chipset* 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot
Ổ cứng hỗ trợ	Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 – Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
Cổng kết nối (Internal)	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header
Cổng kết nối (Back Panel)	1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
LAN / Wireless	2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2*
Kích cỡ	microATX 24.4cm x 24.4cm

Thông tin bổ sung

Trọng lượng	1200 kg

Mainboard Asus TUF Gaming B660M Plus Wifi D4 | HÀNG CHÍNH HÃNG
